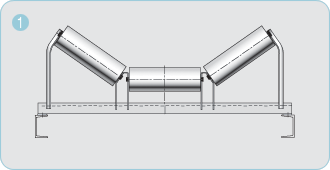

Support the belt in the section of the conveyor that transports the materials. These may be flat or 20 degree, 30 degree, 35 degree and 45 degree through types of equal or unequal roll length |
|
 |
|

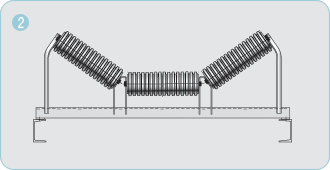

Are recommended to protect the belt and roller by absorbing impact under loading point, especially when large lumps and heavy materials are carried. |
|
 |
|

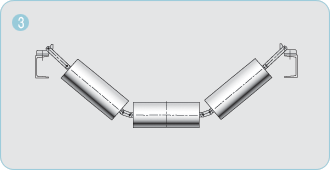

Are flexible carrying idlers designed for easy installation and removal and connected with each roller by link. |
|
 |
|

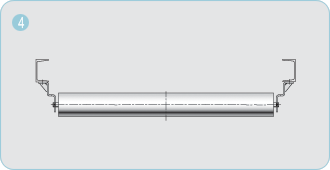

Support the empty belt between the discharge point and the tail pulley. |
|
 |
|

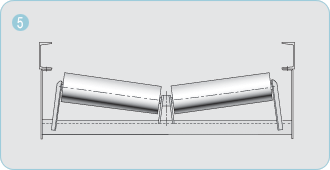

Not only cleans itself, but wipes the belt clean and double-spiral configuration minimize belt training problems such as misalignment. |
|
 |
|

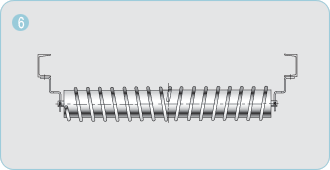

Are recommended in place of plain return idlers when handling sticky materials in order to prevent the build-up of materials on the return idlers. |
|
 |
|

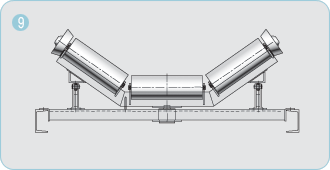

Assist in keeping the belt centered on the conveyor. Reversible type is used on belt traveling th either direction. Positive-type is used on belt traveling in one direction. Positive-type is used on belt traveling in one direction only and is illustrated. |
|
 |
|

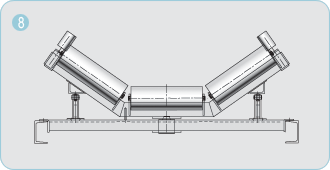

Used for the same purposes as are Self-aligning carrying idlers they are of the Reversible type, belt travel-either direction, and the Positive-type belt travel-one direction only. The positive-type is illustrated. |
|
 |
|

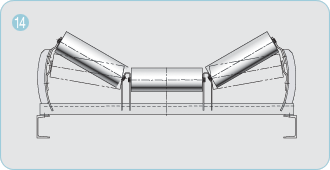

Are of 3-rolls in-line and permit angular adjustment of the troughed Rolls from 5 degree to 25 degree, permitting conformitting to the belt contour during the transition. |
|
 |
|

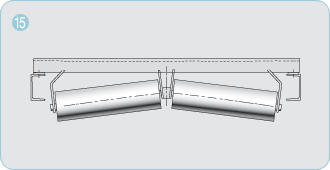

Are of 2-rolls in-line, inverted trough angle of 5 degree and located at concave conversion of return belt. |
|
 |
|

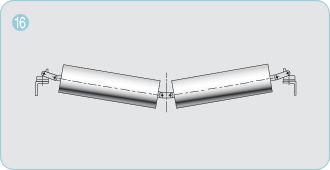

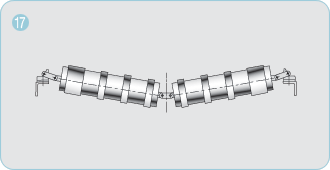

Are flexible Return idlers designed for easy installation and removal and connected with each roller by link. |
|
 |
|
 |

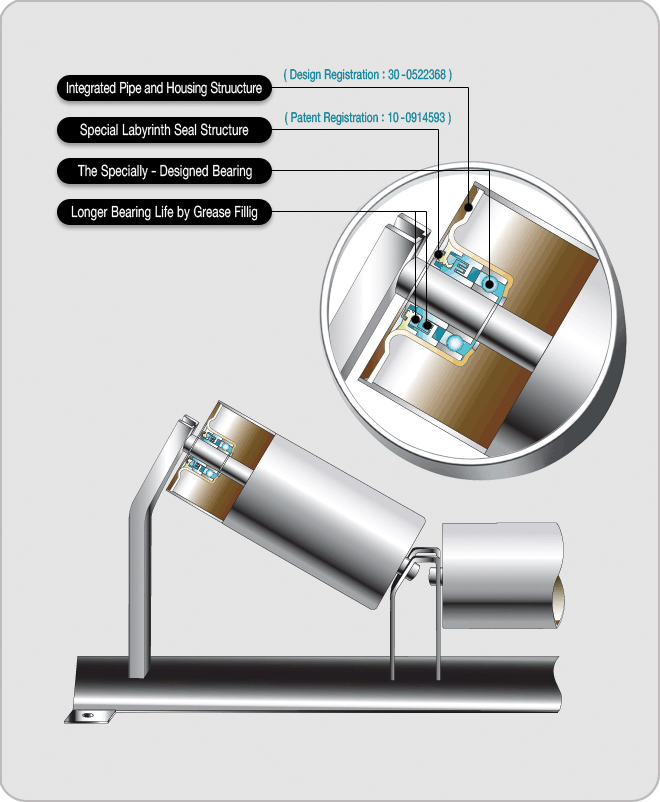

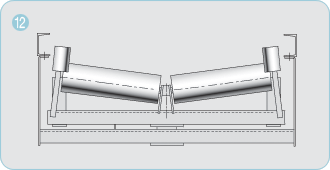

| Due to its low friction coefficient (less than 0.022), it is suitable for belt conveyor in middle-and long distance or medium-and high-speed, and is suitable for outside work due to its dust-proof and water-proof qualities. |
 |
